Surface Mount Technology

Aimtron's Comprehensive

Surface Mount Technology Solutions

SMT

Aimtron specializes in delivering Surface Mount Technology (SMT) solutions for an array of diverse sectors—medical, military, automotive, consumer, commercial, gaming, and alternative energy—all tailored to satisfy the most exacting demands. Our formidable expertise, state-of-the-art facilities, and a highly skilled team of engineers and technicians converge to create an impeccable blend of precision, quality, and innovation, propelling your projects to new heights of excellence.



Aimtron's cutting-edge SMT assembly processes provide numerous advantages, featuring:

Ultra-miniaturized components

We work with the smallest and lightest components, including 01005 and 0201 packages, enabling high-density and compact designs.

Atom

Exceptional component density

Our expertise allows for increased I/O (Input/Output) count and improved routing efficiency, optimizing PCB real estate usage.

Unparalleled performance and reliability

Our use of advanced soldering techniques, like reflow soldering with RoHS-compliant solder, ensures robust and dependable electrical connections.

Cost-effective assembly

We employ high-speed, dual gantry pick-and-place machines and automated 3D Solder Paste Inspection (SPI) systems to minimize manual intervention, reducing assembly costs.

We excel in handling a comprehensive range of SMT components, including Surface Mount Devices (SMDs), high-precision chip components, and passive components like micro-resistors, multi-layer ceramic capacitors (MLCCs), and ultra-compact inductors.

Aimtron's approach to PCB design and fabrication is based on:

High-precision board layout

Our team of skilled engineers employs Computer-Aided Design (CAD) and Design for Manufacturability (DFM) techniques to optimize PCB layouts for enhanced performance and manufacturability.

Cutting-edge fabrication

We utilize sophisticated processes like chemical etching, laser cutting, and multi-layer lamination to create high-quality PCBs with exceptional reliability.

Unmatched component placement accuracy

Our high-speed, dual gantry pick-and-place machines, coupled with our skilled technicians, ensure precise and consistent placement of even the smallest and most delicate components, including 01005 and 0201 packages.

Expert handling of micro-components

Our team is adept at working with ultra-miniaturized, delicate components such as µBGA and QFN packages, minimizing the risk of damage during the assembly process.

Superior soldering processes

We leverage advanced soldering methods, such as reflow soldering with RoHS-compliant solder, for strong, permanent electrical connections between components and the PCB.

Comprehensive defect detection and resolution

Our rigorous inspection and testing processes, featuring Advanced Automatic Optical Inspection (AOI), 3D Solder Paste Inspection (SPI), in-house X-Ray capabilities, and functional testing, enable swift identification and correction of any defects in the assembled PCBs.

Aimtron remains at the vanguard of the rapidly evolving SMT assembly landscape, showcasing our technical prowess and future-forward vision by embracing:

Advanced Automation

Advanced automation

We leverage cutting-edge robotics and sophisticated automated machinery, such as high-speed, dual gantry pick-and-place systems and 3D Solder Paste Inspection (SPI) equipment, to optimize efficiency and reduce costs.

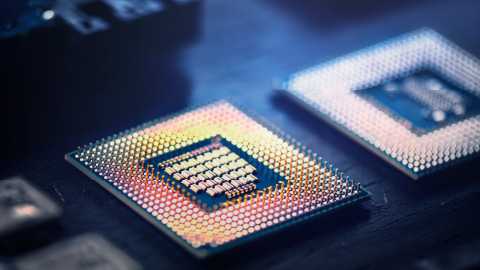

Micro-component innovation

Micro-component innovation

Our expertise in component miniaturization enables us to accommodate ever-shrinking electronic devices, while maintaining exceptional performance and reliability.
Eco-friendly processes

Eco-friendly processes

We are committed to minimizing our environmental impact by adopting lead-free soldering processes, such as RoHS-compliant reflow soldering, and adhering to REACH guidelines.
Exploration of novel materials

Exploration of novel materials and technologies

Our dedicated R&D team continuously investigates new materials, techniques, and assembly processes to enhance PCB performance, durability, and overall product quality.

Immerse yourself in the Aimtron expertise and

Witness the revolution we ignite in the electronics manufacturing landscape through our unrivaled Surface Mount Technology prowess.

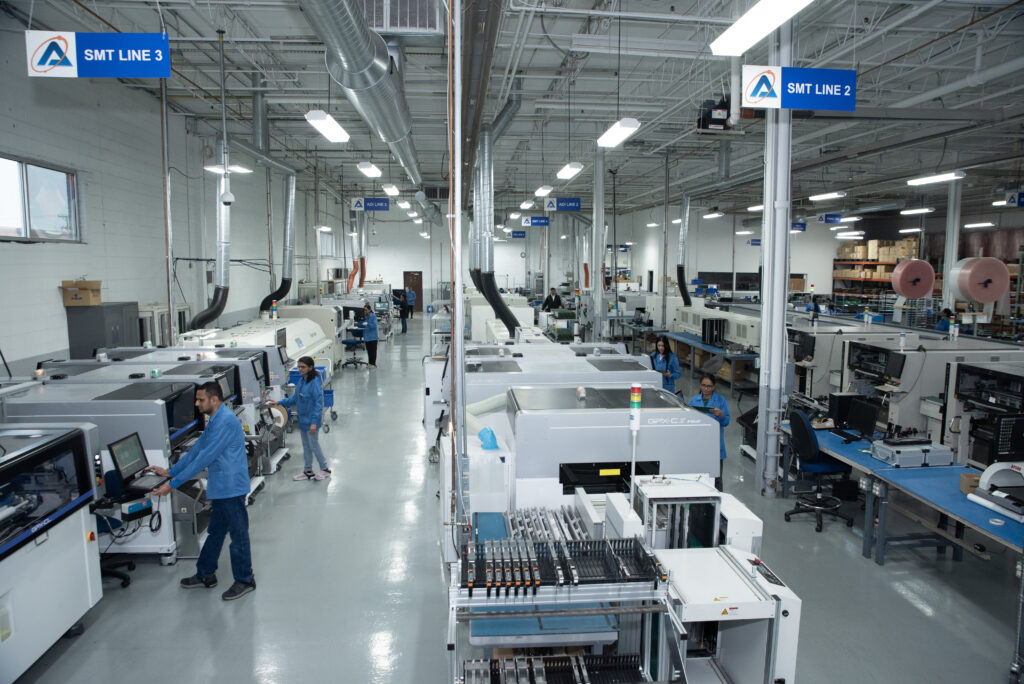

Surface Mount Technology process

Our steadfast dedication to accuracy, quality, and accelerated time-to-market not only surpasses client expectations but also serves as a catalyst for their triumph in today’s fiercely competitive market. Entrust Aimtron with your next SMT project and behold the transformative power of our industry-leading expertise, as we journey together towards a future teeming with innovation and boundless potential.
